Description

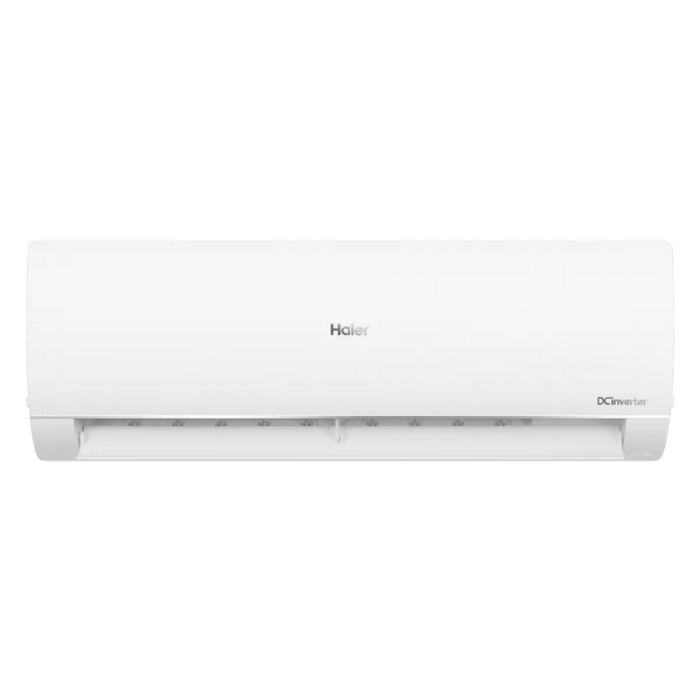

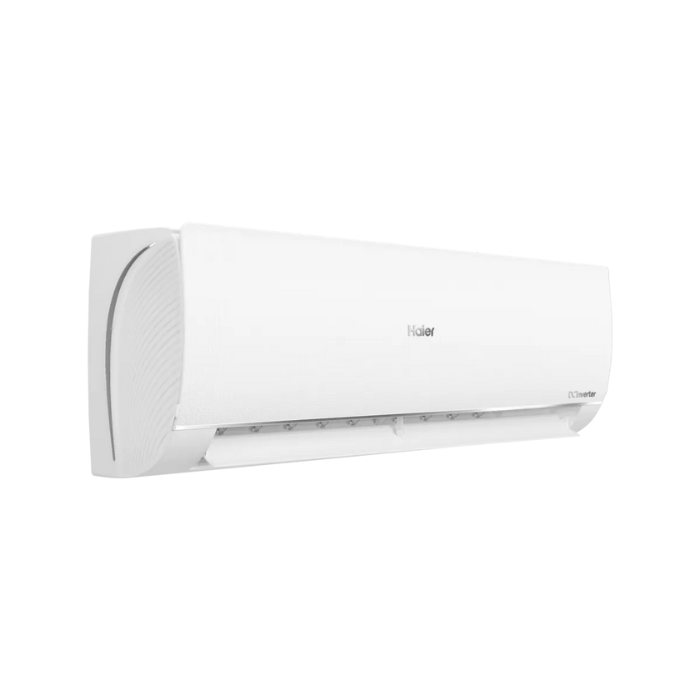

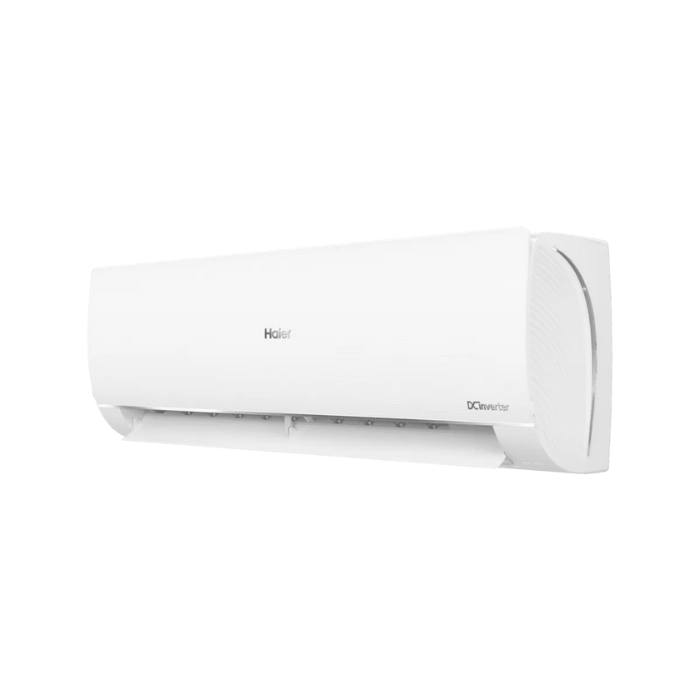

Haier HSU 13HFAB 013WUSDC W T3 DC Inverter AC is designed for powerful and reliable cooling in extreme temperatures. Built with T3 technology, it ensures stable performance even in hot climates. Its DC inverter system delivers energy efficient operation with precise temperature control. A modern design combined with durable components makes it ideal for long term comfort and everyday use.
Key Features
✅ T3 condition with stable operation up to 65°C
✅ Elegant design
✅ Consumption control expert for optimized energy usage
✅Consumption Control Expert
✅1.2A Energy Saving
Technical Specifications
| Specification | Value |
|---|---|
| Performance Specifications | |
| Capacity wise | 1-Ton |
| Category wise | DC Inverter |
| Color | Grey |
| Cooling Capacity BTU | 14000 |
| Running Current Cooling (A) | 1.6 ~ 6.5 |
| Power input Cooling (KW) | 0.36 ~ 1.39 |
| Heating Capacity BTU | 13500 |
| Running Current Heating (A) | 1.6 ~ 5.7 |
| Power Input Heating (KW) | 0.36 ~ 1.25 |
| Other Parameters | |
| Input Power Supply (Ph, VAC, Hz) | 1PH, 230V ~, 50Hz |
| Air Flow Volume (m³/h) | 750 |
| Refrigerant Type | R-32 |
| Refrigerant Amount (G) | 750 |
| Indoor Unit Parameters | |
| Indoor Net Dimension (L×W×H) mm³ | 850×295×210 |
| Indoor Packing Net Dimension (L×W×H) mm³ | 952×389×283 |
| Indoor Net Weight (kg) | 11.5 |
| Indoor Gross Weight (kg) | 14.1 |
| Outdoor Unit Parameters | |
| Outdoor Net Dimension (L×W×H) mm³ | 800×345×560 |
| Outdoor Packing Net Dimension (L×W×H) mm³ | 908×405×625 |
| Outdoor Net Weight (kg) | 27 |
| Outdoor Gross Weight (kg) | 30.5 |
| Accessories | |
| Installation Kit (Liquid side) | Copper, 2920×6×0.65mm (6mm) |
| Installation Kit (Gas side) | Copper, 2920×12×0.65mm (12mm) |
| Power Cable | 3×2.5mm² |
| Communication Cable (Indoor & Outdoor) | 4×2.5mm² |
| Warranty | |
| Compressor | 10 Years |
| PCB Kit | 4 Years |
| Evaporator | 3 Years |
| Parts | 1 Year |
Consumption Control Expert
The Consumption Control Expert feature allows you to track energy consumption through the app, set targeted electricity limits, and automatically optimize the AC’s operation for enhanced energy efficiency.
2A Energy Saving
During dehumidification mode, the AC lowers the compressor current to just 1.2A, enabling energy savings of up to 60% while boosting the unit’s overall efficiency. This optimized power management ensures effective performance with reduced electricity consumption
