Description

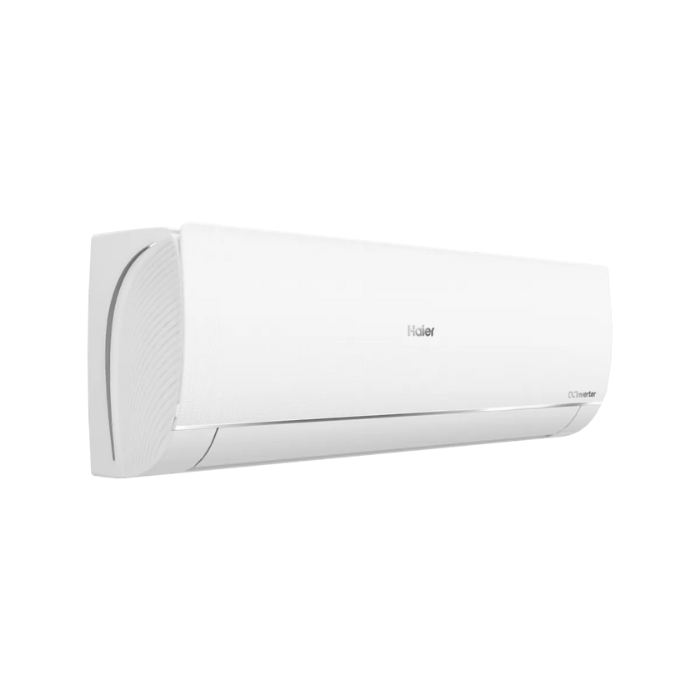

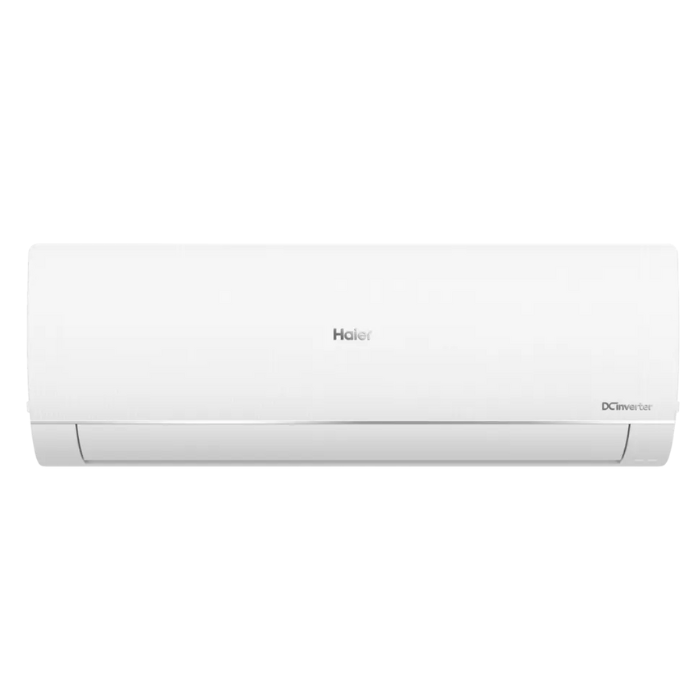

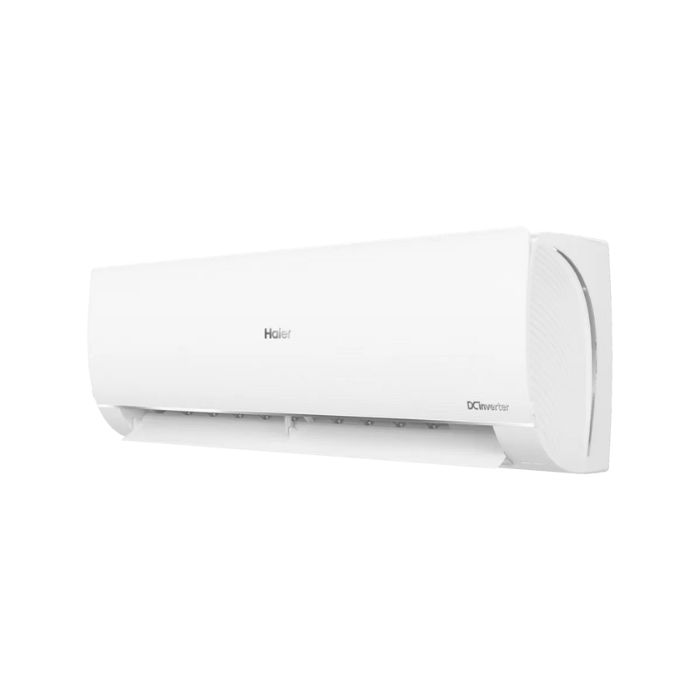

The Haier T3 Inverter HSU 19HFAB 013WUSDC W is built for powerful and stable cooling in extreme temperatures. With advanced T3 inverter technology, it delivers full performance even in very hot conditions. Its energy efficient operation and precise temperature control make it ideal for large rooms, homes, and offices.
Key Features
✅ T3 compressor for stable operation in high ambient temperatures up to 65°C
✅ Heat and cool functionality for year-round comfort
✅ Advanced smart inverter technology for optimized energy consumption
✅ Turbo mode for rapid cooling and heating
✅ Self-cleaning function to maintain air quality and unit efficiency
✅ Anti-corrosion coating for long lasting durability
✅ WiFi connectivity for remote control and monitoring
✅ Elegant design that complements any interior
✅ Consumption control expert for efficient power usage
Technical Specifications
| Specification | Value |
|---|---|
| Performance Specifications | |
| Capacity wise | 1.5-Ton |
| Category wise | DC Inverter |
| Color | Grey |
| Cooling Capacity BTU | 20500 |
| Running Current Cooling (A) | 2.3 ~ 9.0 |
| Power input Cooling (KW) | 0.52 ~ 2.06 |
| Heating Capacity BTU | 20300 |
| Running Current Heating (A) | 2.4 ~ 8.3 |
| Power Input Heating (KW) | 0.54 ~ 1.90 |
| Other Parameters | |
| Input Power Supply (Ph, VAC, Hz) | 1PH, 230V ~, 50Hz |
| Air Flow Volume (m³/h) | 1100 |
| Refrigerant Type | R-32 |
| Refrigerant Amount (G) | 970 |
| Indoor Unit Parameters | |
| Indoor Net Dimension (L×W×H) mm³ | 1015×325×225 |
| Indoor Packing Net Dimension (L×W×H) mm³ | 1090×415×313 |
| Indoor Net Weight (kg) | 14.4 |
| Indoor Gross Weight (kg) | 17.7 |
| Outdoor Unit Parameters | |
| Outdoor Net Dimension (L×W×H) mm³ | 820×310×630 |
| Outdoor Packing Net Dimension (L×W×H) mm³ | 942×392×693 |
| Outdoor Net Weight (kg) | 37.5 |
| Outdoor Gross Weight (kg) | 41.5 |
| Features | |
| Cooling | Yes |
| Heating | Yes |
| Dry | Yes |
| Vertical Flapper Auto Swing | Yes |
| Horizontal Louvers Auto Swing | Yes |
| Air-Purification With UV Technology | No |
| WiFi | Yes |
| Self-Clean | Yes |
| Anti-Corrosion | Yes |
| Turbo Function | Yes |
| ECO Mode | Yes |
| Accessories | |
| Installation Kit (Liquid side) | Copper, 2920×6×0.65mm (6mm) |
| Installation Kit (Gas side) | Copper, 2920×12×0.65mm (12mm) |
| Power Cable | 3×2.5mm² |
| Communication Cable (Indoor & Outdoor) | 4×2.5mm² |
| Warranty | |
| Compressor | 10 Years |
| PCB Kit | 4 Years |
| Evaporator | 3 Years |
| Parts | 1 Year |
Elegant Design

Consumption Control Expert
