Description

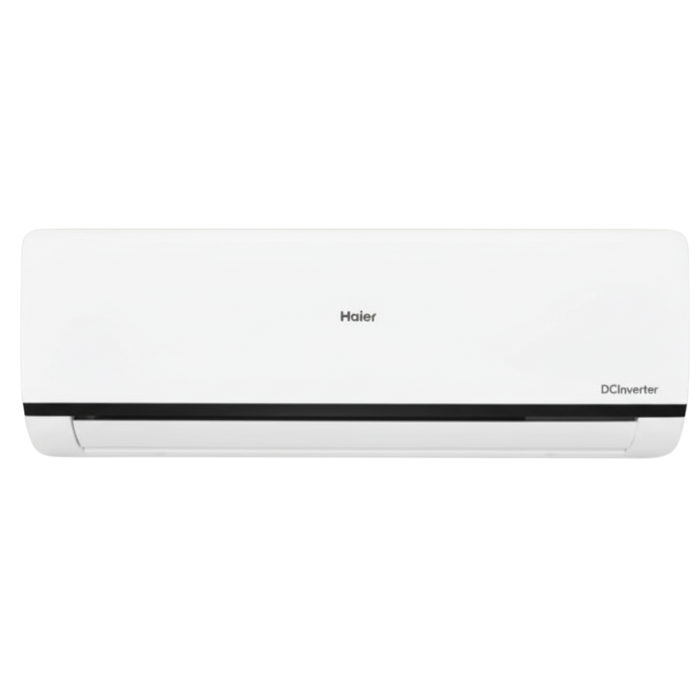

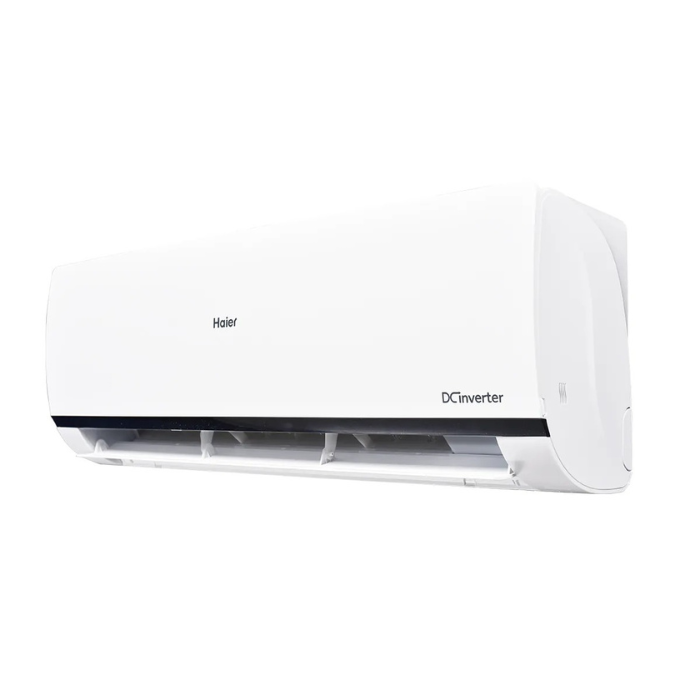

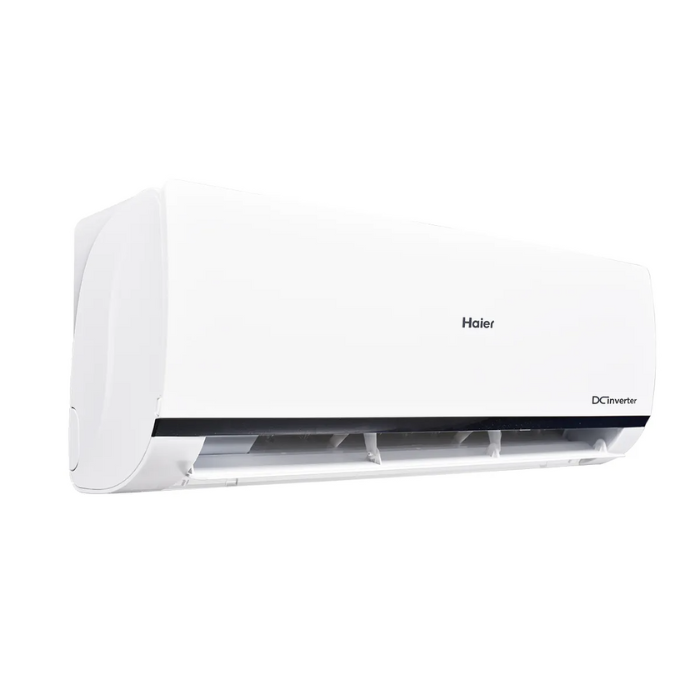

Haier HSU-13HFC Triple Inverter AC is a 1-ton DC inverter air conditioner designed to deliver efficient cooling and heating throughout the year. Equipped with Haier’s Triple Inverter technology, it ensures optimal comfort while promoting energy savings. This model also features UPS-enabled functionality, allowing it to operate during power outages when connected to a compatible UPS device.
Key Features
✅Triple Inverter Technology: Combines inverter compressor, blower, and indoor/outdoor units for enhanced energy efficiency.
✅UPS Enabled: Operates on UPS power with an additional device, ensuring uninterrupted comfort during power outages.
✅One-Touch Cleaning: Simplifies maintenance by automatically cleaning the evaporator, reducing the need for manual cleaning.
✅Turbo Cooling & Heating: Provides rapid temperature adjustments for immediate comfort.
✅Anti-Corrosion Coating: Enhances durability by protecting components from rust and corrosion.
Technical Specifications
| Specification | Details |
|---|---|
| Capacity | 1 Ton |
| Cooling Capacity (BTU) | 13,000 |
| Heating Capacity (BTU) | 13,500 |
| Air Circulation (m³/h) | 700 |
| Power Input (W) Cooling | 450 – 1,410 |
| Power Input (W) Heating | 450 – 1,450 |
| Running Current (A) Cooling | 2.6 – 6.6 |
| Running Current (A) Heating | 2.6 – 6.7 |
| Power Supply (Ph/V/Hz) | 1/220/50 |
| Refrigerant | R-32 (750g) |
| Indoor Dimensions (W×D×H) | 850 × 295 × 210 mm |
| Outdoor Dimensions (W×D×H) | 700 × 245 × 535 mm |
| Indoor Noise Level (dB) | 41/36/30 (High/Mid/Low) |
| Outdoor Noise Level (dB) | 52 |
| Refrigerant Pipe | Liquid Side: 6mm, Gas Side: 9mm |
| Color | White |
| Display | Hidden LED |
| Warranty | 10 Years Compressor, 4 Years PCB, 1 Year Parts |
Â
Self Cleaning
UPS Enabled
Haier inverter air conditioners can operate on UPS backup during power outages with an additional device. The smart PCB automatically monitors the power supply and seamlessly switches between municipal power and UPS mode. When a power failure (0V) is detected, the system instantly switches to UPS power mode for low-frequency operation, ensuring uninterrupted cooling comfort.
