Description

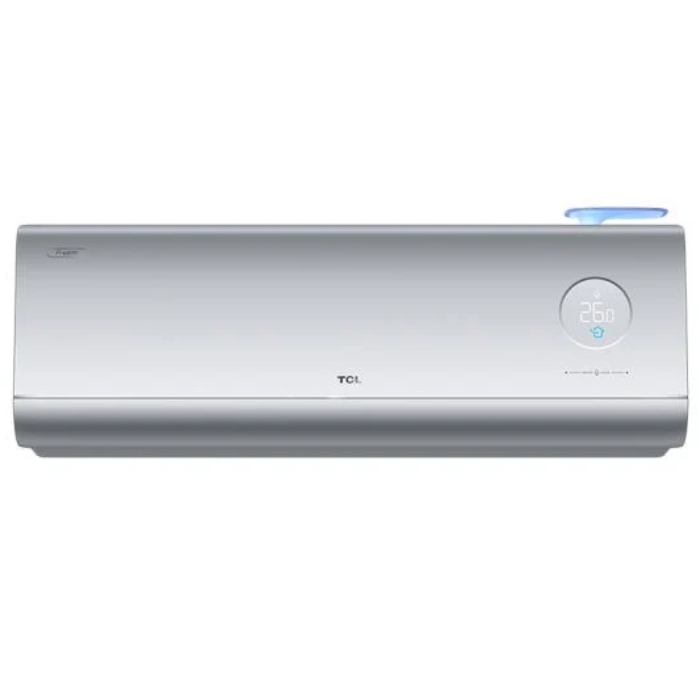

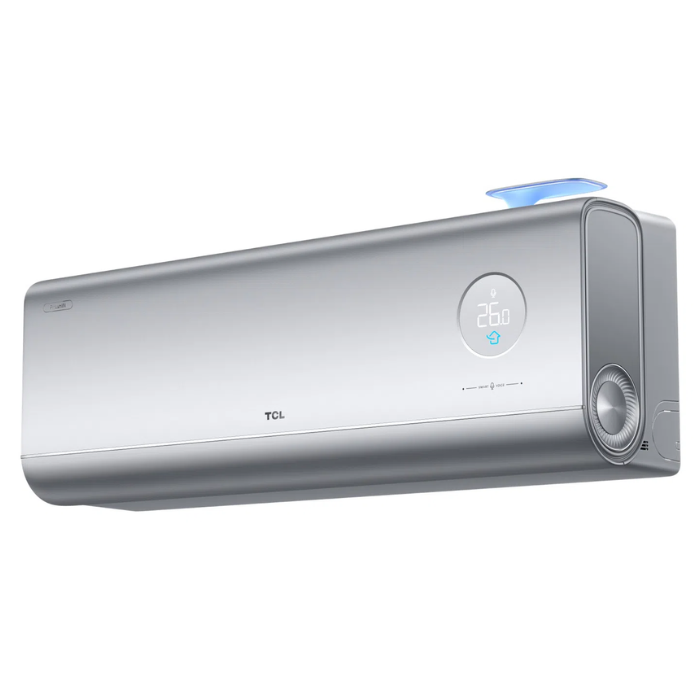

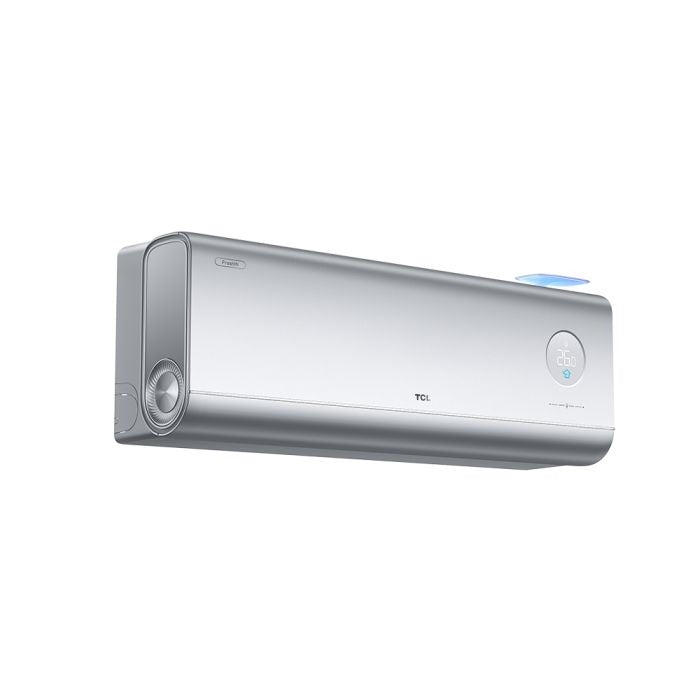

The TCL FreshIN Inverter 12T5 FRESH is designed to deliver powerful cooling with continuous fresh air circulation for a healthier indoor environment. Equipped with advanced inverter technology, it ensures energy efficient performance with fast and stable cooling. Smart features, quiet operation, and modern design make it ideal for bedrooms, living rooms, and offices. Built for reliability, it provides long lasting comfort and improved air quality every day.
Key Features
✅ FreshIN Technology
✅ T AI energy saving technology
✅ Six speed Gen mode
✅ Smart voice control
✅ QuadruPuri filter
✅ Visible air quality display
✅ Gentle breeze mode
✅ Stable operation at high temperatures up to 66°C
✅ Stable heating performance at low temperatures down to minus 25°C
Technical Specifications
| Specification | Details |
|---|---|
| General Information | |
| Type | Heating Pump |
| Control Type | Remote |
| Compressor Type | Rotary |
| Refrigerant | R32 / 0.63kg |
| Suitable Area (m²) | 15 ~ 23 |
| Electrical | |
| Power Supply (Ph-V-Hz) | 1Ph-220-240V~50Hz |
| Voltage Range (V) | 155 ~ 265 |
| Cooling Performance | |
| Cooling - Capacity (W) | 3500 (1020~4200) |
| Cooling - Rated Power Input (W) | 900 (75~1850) |
| Cooling - Rated Current (A) | 4.1 (0.5~8.6) |
| Cooling - EER (W/W) | 3.85 |
| Heating Performance | |
| Heating - Capacity (W) | 3600 (1020~5200) |
| Heating - Rated Power Input (W) | 810 (75~2000) |
| Heating - Rated Current (W) | 3.7 (0.5~9.0) |
| Heating - COP (W/W) | 4.1 |
| Heating - Max Current (A) | 9 |
| Additional Performance | |
| Moisture Removal (Liters/h) | 1.2 |
| Indoor Air Flow (Hi/Mi/Lo) (m³/h) | 680/680 |
| Noise Levels | |
| Indoor Noise Level (dB(A)) | 42 |
| Outdoor Noise Level (dB(A)) | 52 |
| Operating Temperature | |
| Ambient Temperature (℃) | -25 ~ 66 |
| Refrigerant Piping | |
| Max. Refrigerant Pipe Length (m) | 15 |
| Indoor Unit Dimensions | |
| Dimension (W×D×H) mm | 920×313×208 |
| Packing (W×D×H) mm | 993×389×311 |
| Net/Gross Weight (kg) | 11 / 14 |
| Outdoor Unit Dimensions | |
| Dimension (W×D×H) mm | 795×305×549 |
| Packing (W×D×H) mm | 852×358×600 |
| Net/Gross Weight (kg) | 24 / 27 |
A New Generation of Fresh Air Conditioner
Remove Odors | Optimize Humidity | Enjoy Cleaner Air
58℃ Self-cleaning Function
The evaporator features a self-cleaning process that includes dewing,
frosting, defrosting, drying and 58℃ sterilizing to eliminate bacteria.
Additionally, the outdoor unit's reverse function automatically removes dust,
ensuring cleaner airflow and promoting healthier breathing.
